Product Tag - p4mm for indoor use

  • P3.91mm Outdoor 戶外防水LED wall

    0 out of 5

    LED Module Size: 250mmx250mmx17.5mm ,LED Module With 1.6cm PCB and No LED Mask.
    LED Module Brightness: 5500-5800 CD/m2(Nits)
    LED Module Power Consumption: 35W/PC
    Nationstar LED with ICN2038S/MBI5124 Driving IC.


    1. SMD Outdoor LED Module Including the Data & Power Cables, Waterproof Rubber Ring.

    2. Epistar LEDs, 2 Years Warranty, Ship in 24 hours,Free Online Support.

    3. LED Module Can Work With Linsn,Novastar,Colorlight,Xixun LED Conrol Card Etc.

    P3.91mm Outdoor LED Display Panel Parameters:

    Model LINSN-P3.91-Outdoor-64X64
    Resolution 64(H)×64(V)
    Pitch 3.91mm
    LED Arrangement SMD1921
    Driver Mode Dynamic 1/16 Duty constant current
    Size 250mm×250mm
    Electricity Parameter
    Optical Ratings
    Brightness 5500-6000cd/M2
    View Angle 140 degree ( horizontal)  140degree(vertical)
    View Distance 4m-40m
    Gray Scale 8bits input, correction with 16bits
    Display Color 16.7M
    Brightness Adjustment 100 levels
    Power Supply
    Operation Power AC100-240V 50-60HZ  Switch-able
    Maxim Power Consumption 950 W/m2
    Average Power Consumption 320 W/m2
    Control System
    Correction Scale Level 16bits
    Frame Update Frequency 60Hz
    Screen Refresh Frequency 960-1920HZ/S
    Gamma Correction -5.0—5.0
    Support Input Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
    Control Distance Ethernet cable 100m, optical fiber 5km
    Support VGA Mode 800×600,1024×768,1280×1024,1600×1200
    Color Temperature 5000-9300 adjustable
    Brightness Correction dot by dot, module by module, cabinet by cabinet
    Operating Temp. -20-60 Celsius degree
    Operating Humidity 10-95% RH
    Operating Life 100,000 hours
    MTBF 5000 hours
    Continuous Working Time ≥48 hours
    Protection Level IP65
    Out of Control Pixel Rate 0.01%
  • P4.81mm Led Display Screen

    0 out of 5
  • P4.81mm Rental Led Screen

    0 out of 5
  • P4mm for Darts Competition

    0 out of 5
  • P4mm Hong Kong Snooker Masters

    0 out of 5
  • P4mm Indoor Display for Concert

    0 out of 5
  • P4mm Led Screen for RENTAL

    0 out of 5
  • P4mm Rental Screen

    0 out of 5

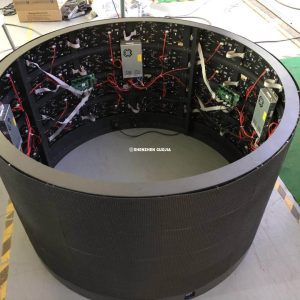

  • P5mm Indoor Round Display
