Pitch 3mm LED Wall - Led Display

Pitch 3mm LED Wall

Categories: China, INDOOR DISPLAY Tags: #Primary School Hall LED wall, #官立小學LED Wall, indoor led screen, led screen for rent, p4mm for indoor use, p4mm for rent, rental led display, 學校圖書館LED Wall, 醫院LED WALL工程

Description

Description

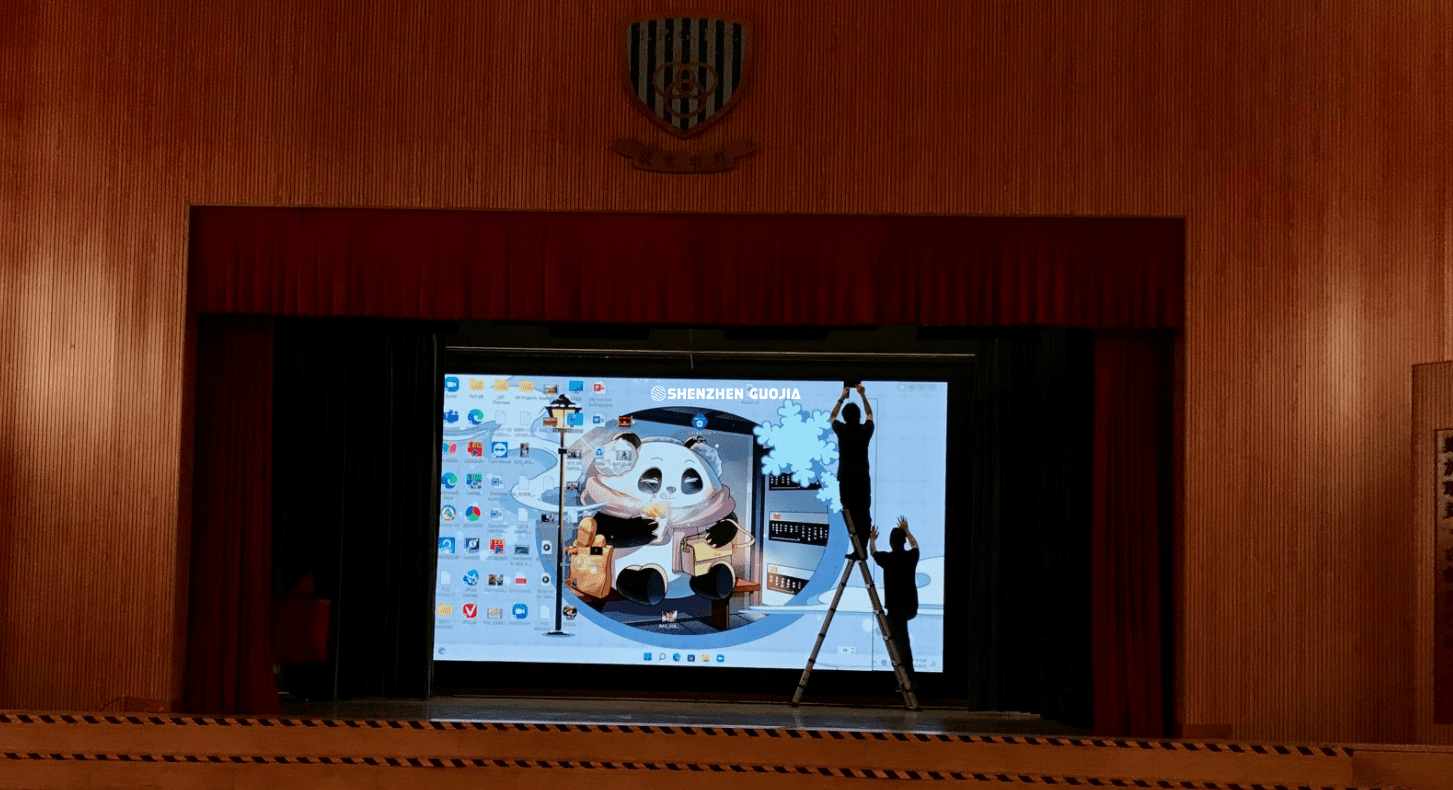

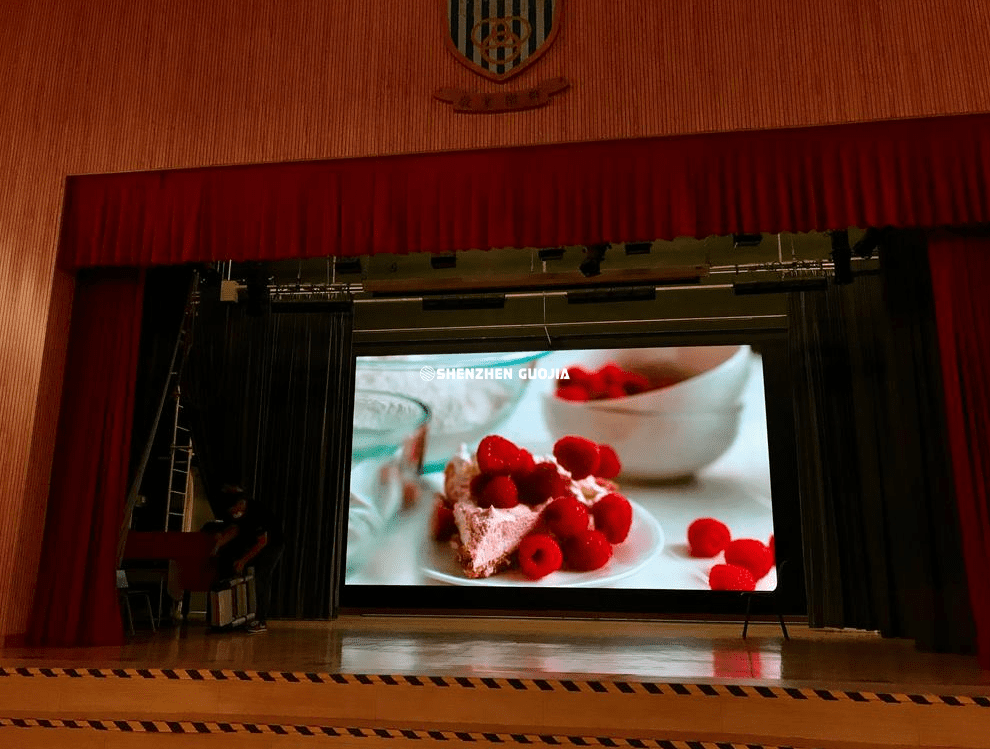

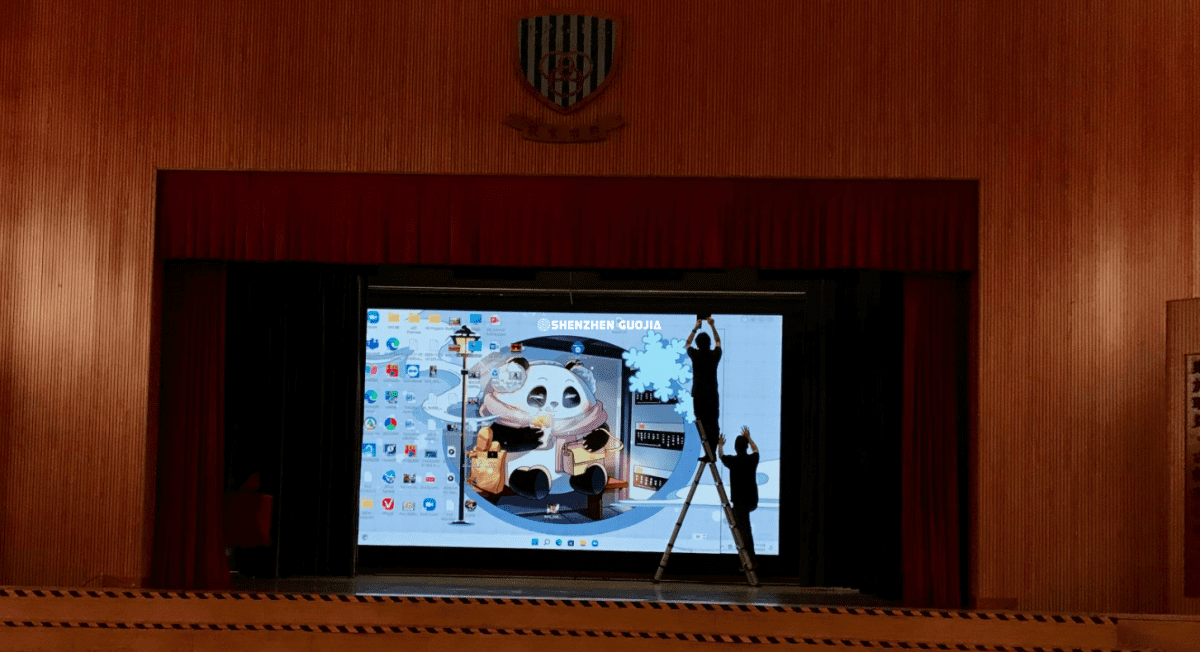

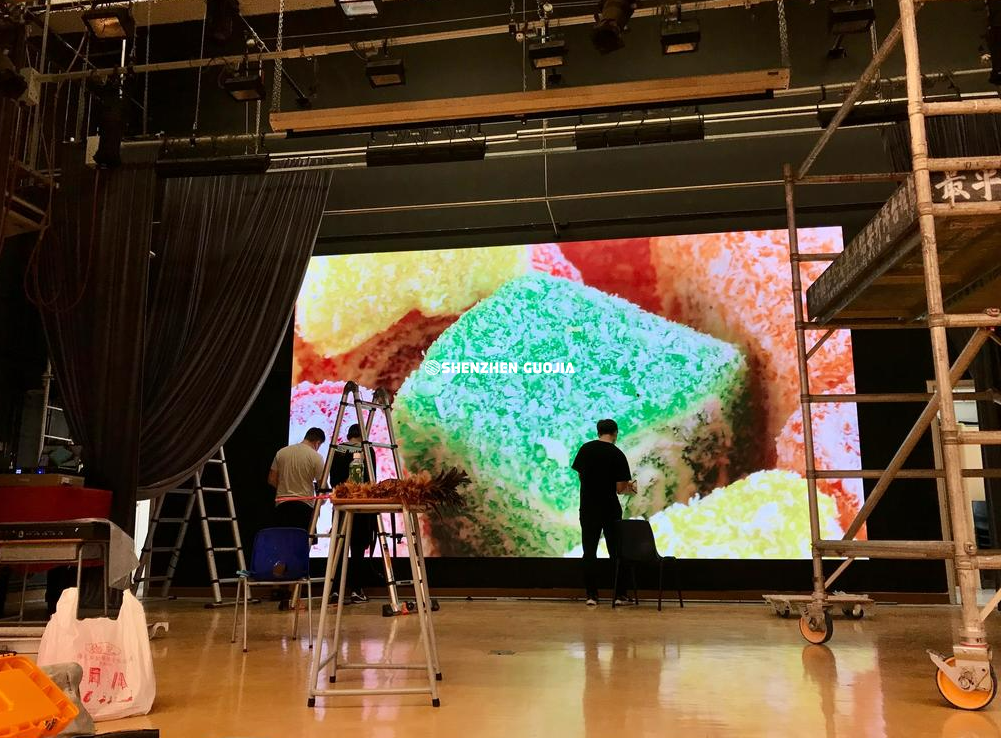

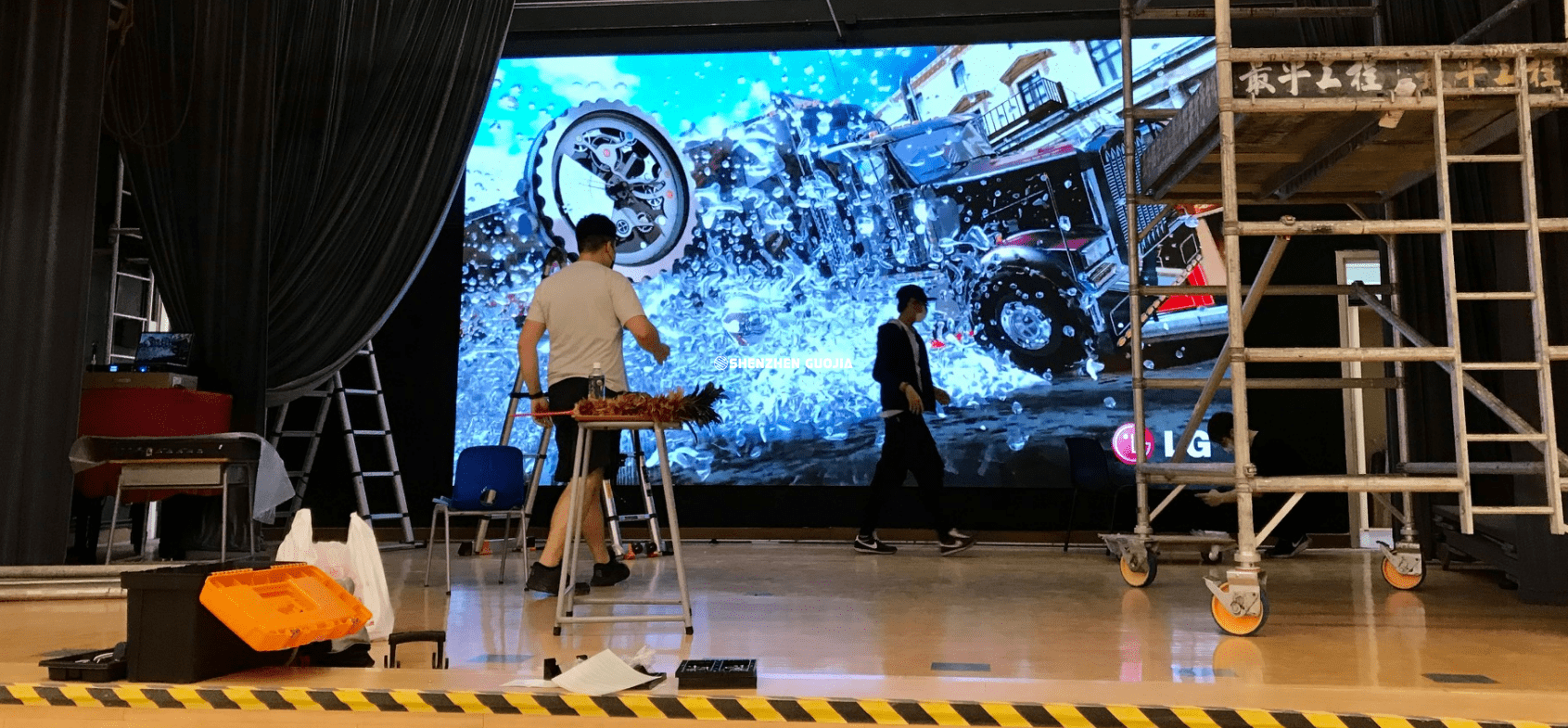

#Primary School Hall LED wall
#官立小學LED Wall

Resolution

32(H)×16(V)

Pitch

3mm

Density

111111dots/㎡

LED Arrangement

SMD2121

Driver Mode

Dynamic 1/2 OR 1/4 Duty constant current

Size

192mm(W)*192mm(H)

Mask

Pure Black mask-high contrast screen

3.Electricity Parameter

Optical Ratings

Brightness

≥2000 cd/㎡

View Angle

140 degree ( horizontal) 140 degree (vertical)

View Distance

3~25m

Gray Scale

48bits input, correction with 16bits

Display Color

16.7M

Brightness Adjustment

Brightness Calibration: 256 grade

Power Supply

Operation Power

AC100-240V 50-60HZ Switch-able

Maximum Power Consumption

1050 W/m2

Average Power Consumption

320 W/m2

Control System

Correction Scale Level

16bits

Frame Update Frequency

More than 60Hz

Screen Refresh Frequency

300～2440 frame/s

Gamma Correction

-5.0—5.0

Support Input

Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI

Control Distance

Ethernet cable 100m, optical fiber 5km

Support VGA Mode

800×600, 1024×768, 1280×1024, 1600×1200

Color Temperature

5000-9300 adjustable

Brightness Correction

dot by dot, module by module, cabinet by cabinet

Reliability

Operating Temp.

-20-60 Celsius degree

Operating Humidity

10-95% RH

Operating Life

100,000 hours

MTBF

5000 hours

Continuous Working Time

≥72 hours

Protection Level

IP65 Waterproof Outdoor

Out of Control Pixel Rate

0.01%
