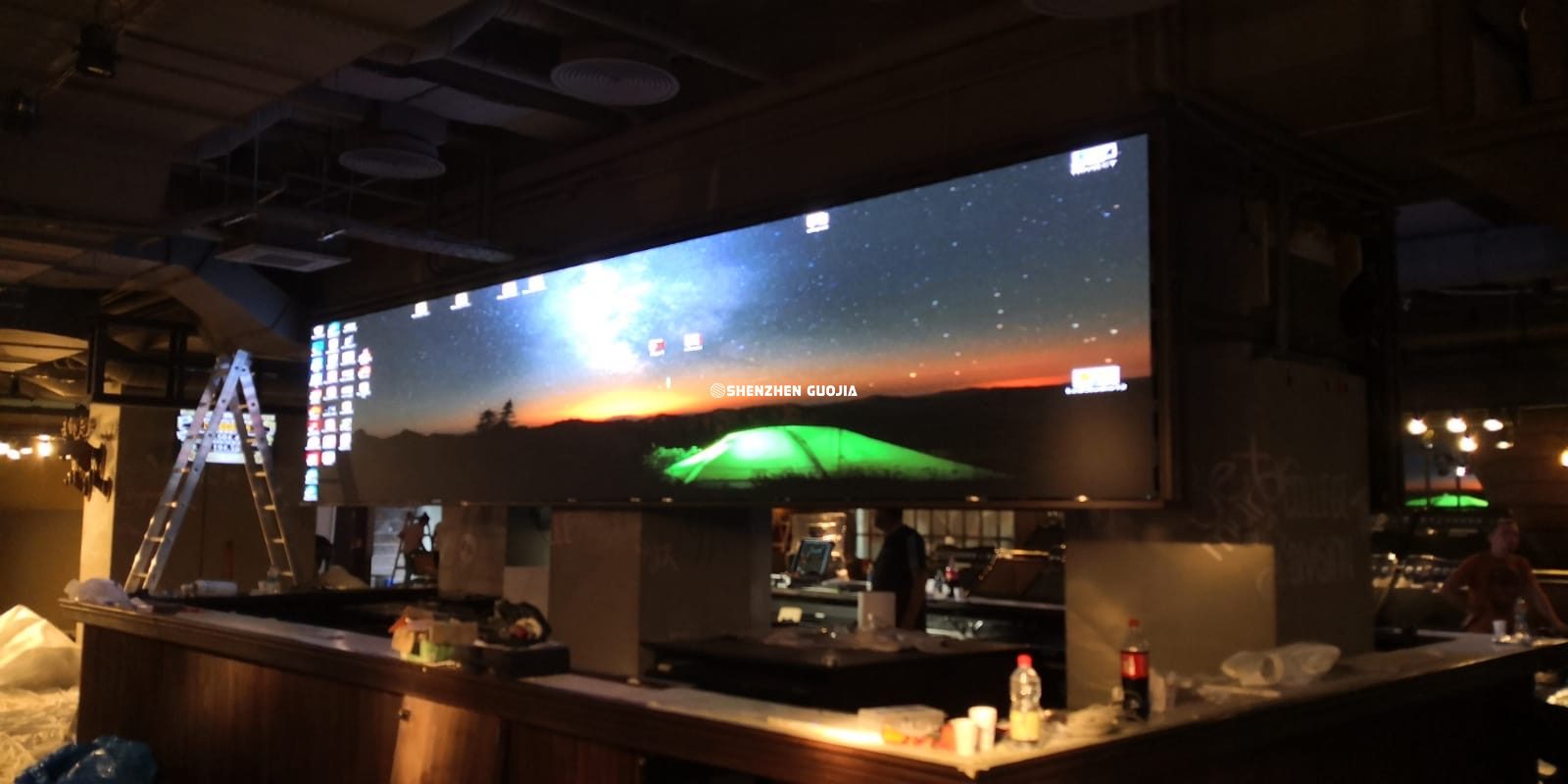

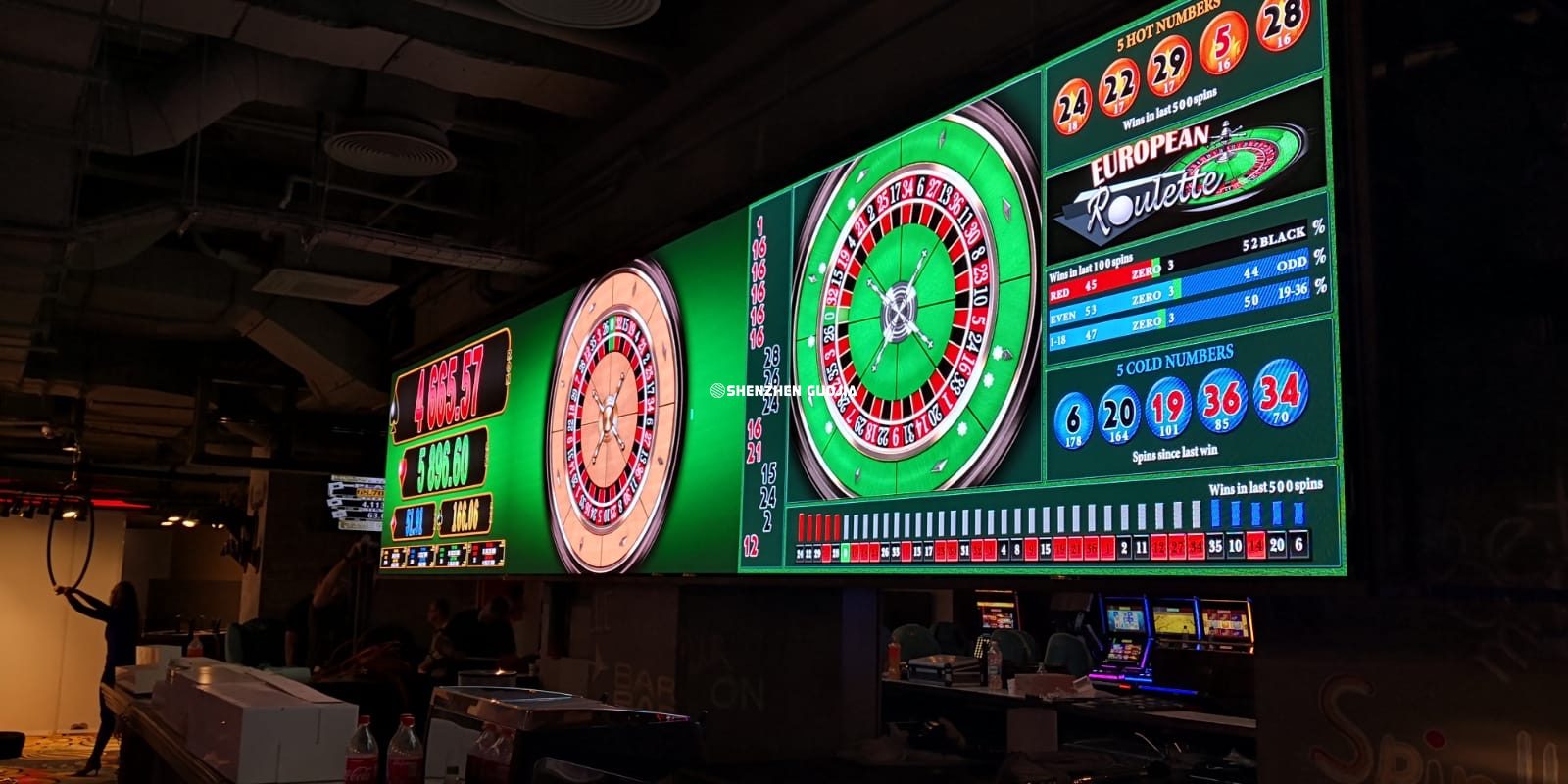

Indoor Screen P1.56mm For Casino in Eastern Europe

Indoor Screen P1.56mm For Casino in Eastern Europe


  • Description

Description

  • It delivers an image which is super subtle and without getting tired after a longtime watching.
  • Super High Refresh Rate, High Frame Frequency, No Ghosting & Twisting or Smear.
  • Front Serviceable Module allows easy Maintenance, Saving Time & Spac.
  • 16 Bit Grey Grade Processing, the color transition will be more natural.
  • Pixel StructureSMD1010
    LED ModelP1.56
    Pixel Density(点/m2)409600
    Module Resolution(W×H)128×108
    Module Size(mm)200(W)×168.75(H)
    Module Maximum Power Consumption(W)25
    Module of Cabinet (W×H)3×2
    Cabinet Resolution(W×H)384×216

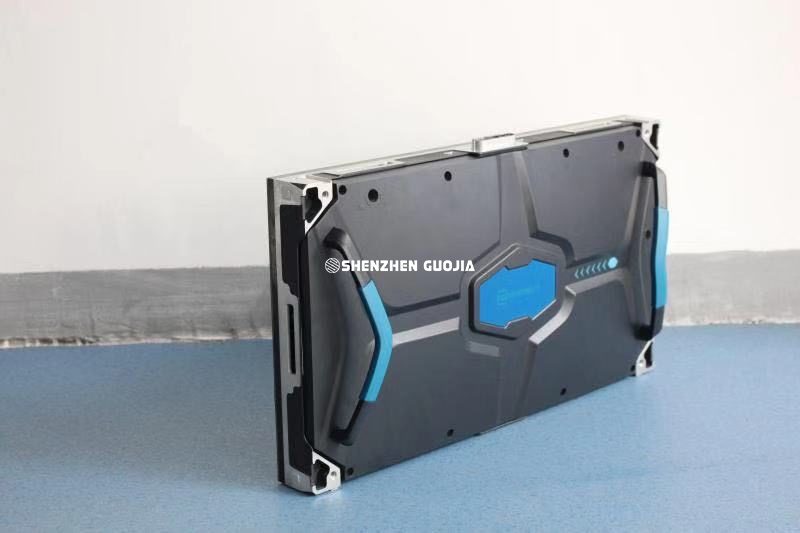

    Cabinet Size(mm)600(W)×337.5(H)×80(D)
    Cabinet Area(m2)0.2025
    Cabinet Weight(kg)9.9
    Cabinet Flatness(mm)≤0.2
    Maintain StylePre  maintenance
    Cabinet Flatness(mm)≤0.1mm
    Cabinet Materialdie-cast aluminum
    single  pix brightness  correctionhave
    single  pix  chroma  correctionhave
    white  balance  brightness(nits)200~600 Adjustable
    Color Temperature(K)3200~9300 Adjustable
    viewing  angle (Horizontal Vertical)160/160
    Light Pixel Centerline Spacing Difference<3%
    Brightness/Color Uniformity≥97%
    Contrast Ratio5000:01:00
    Max  Power  consumption(W/m2)800
    Avg Power Consumption(W/m2)250
    Power  supply  requirementAC90~264V,frequency 47~63(Hz)
    Frame Frequency(Hz)50&60
    Driving ModeConstant current drive,1/27
    Grey Scale65536
    Refresh Rate(Hz)Maximum 3840
    Color Processing Level16 bit
    Video Effect2KHD、4K/8K Ultra Picture
    Working Temperature/Humidity(℃/RH)-20~60  / 10%~85%RH(No  moisture  condensation)
    Storage Temperature/Humidity(℃/RH)-20~60  / 10%~85%RH(No  moisture  condensation)
    Certificate StandardCCC,TUV-CE
