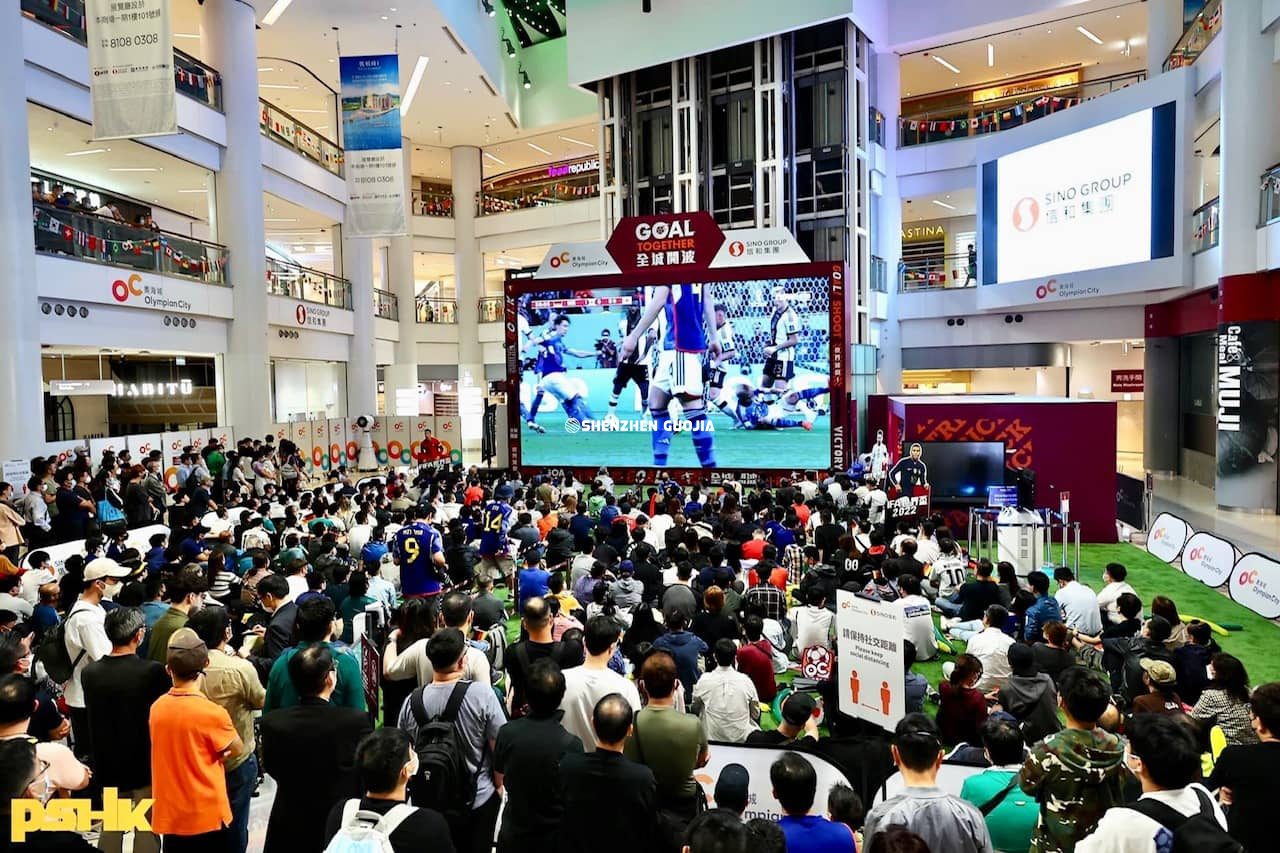

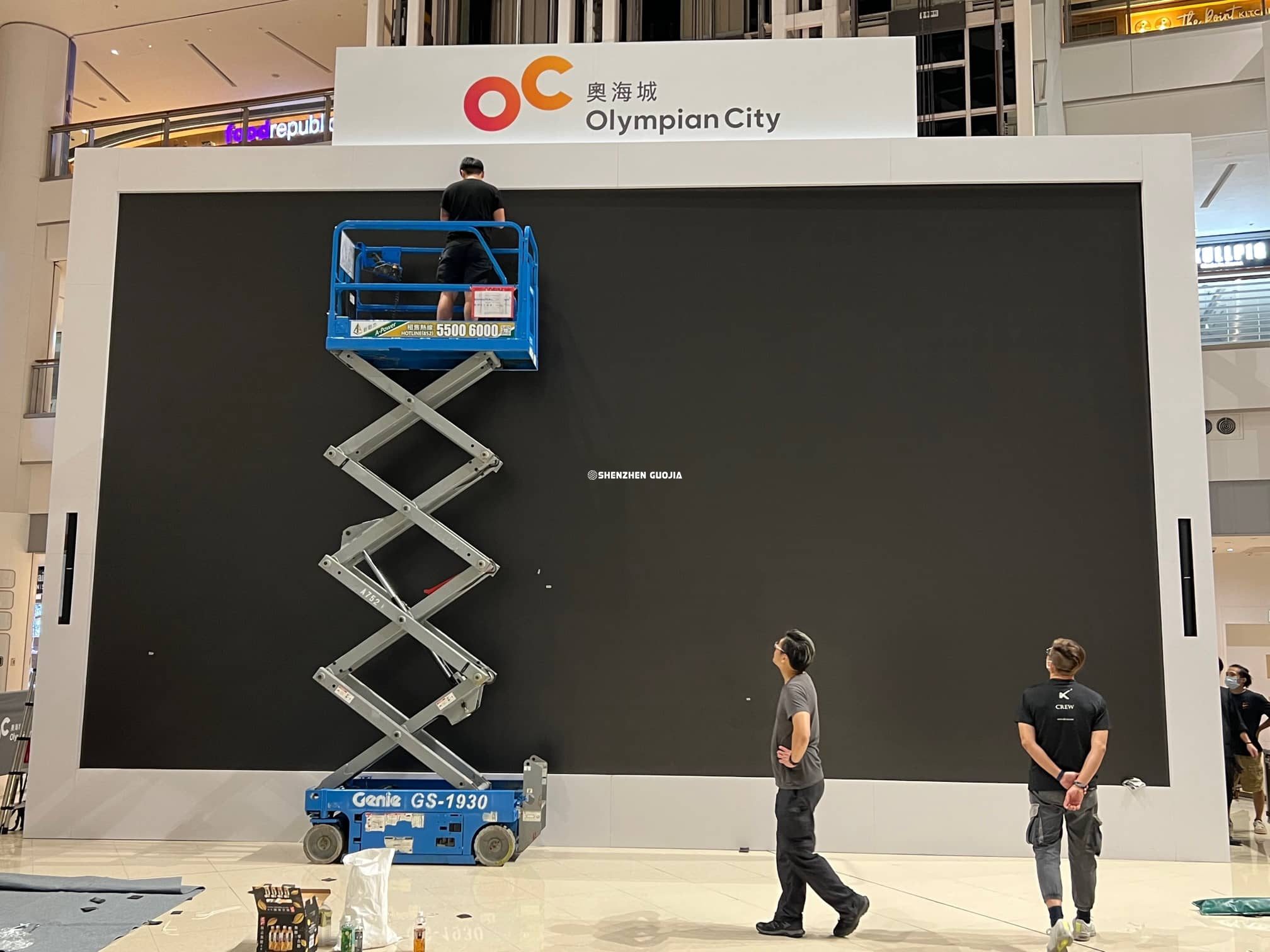

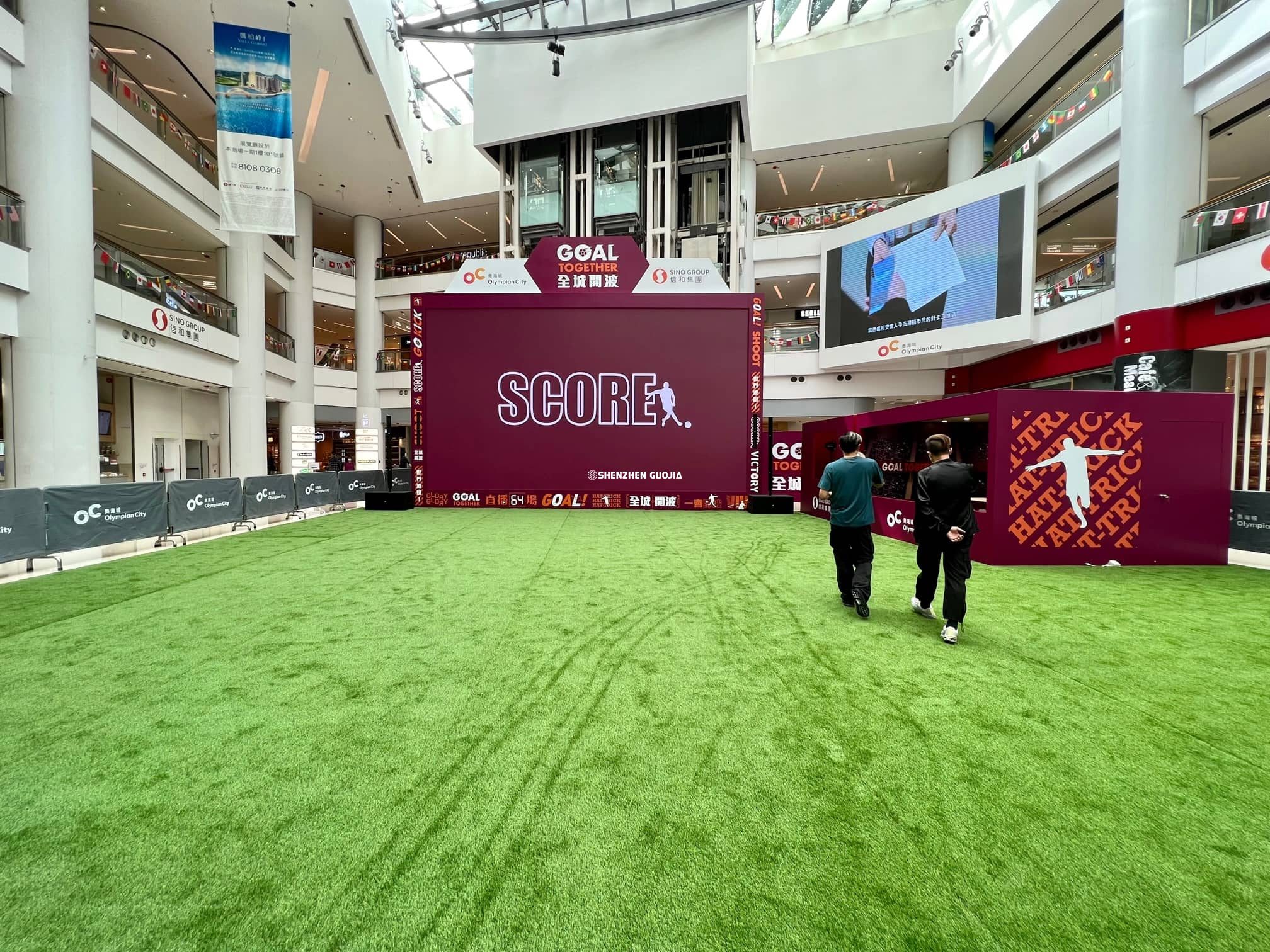

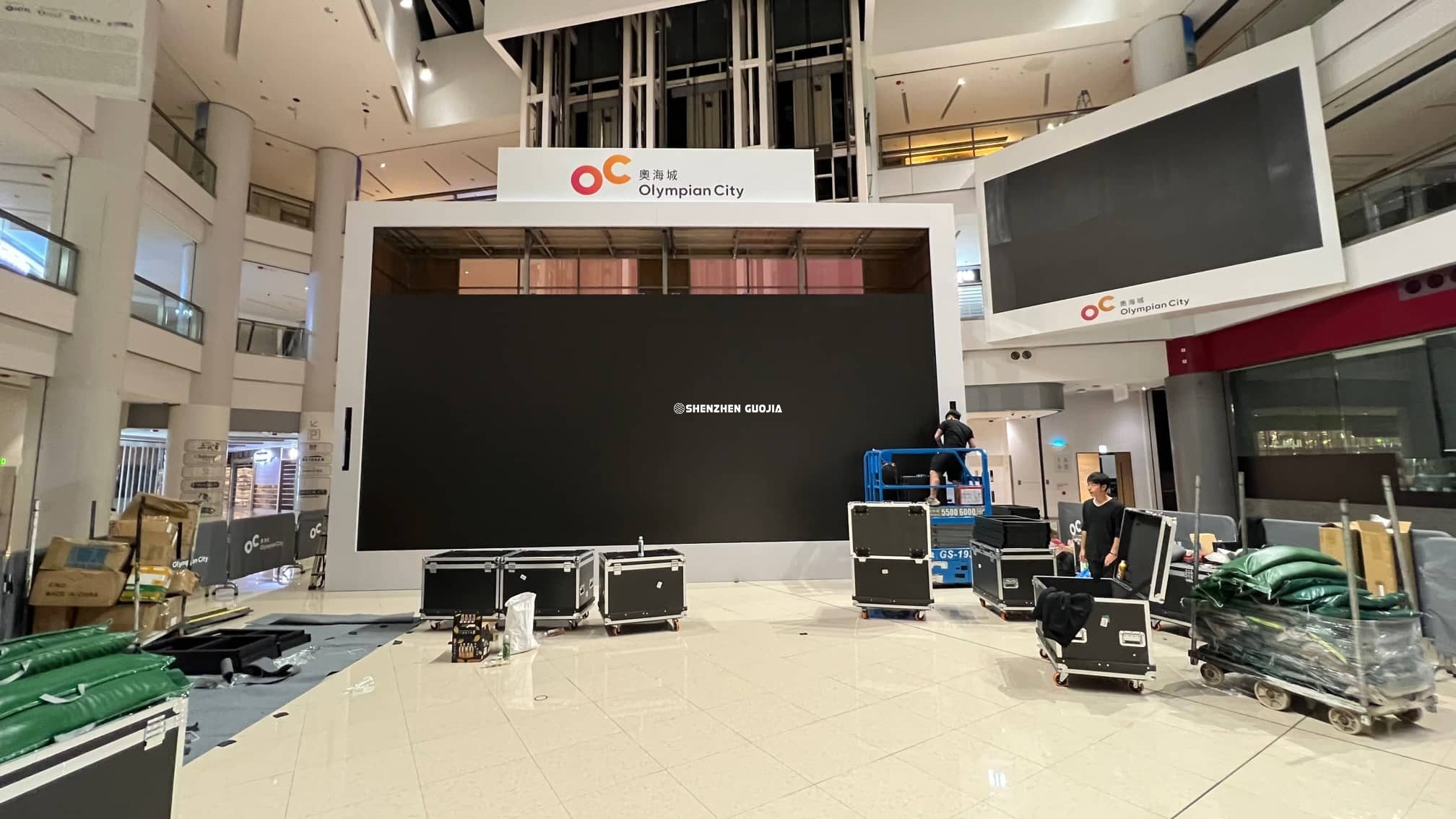

10m x 6m Biggest indoor LED Wall in Hong Kong

10m x 6m Biggest indoor LED Wall in Hong Kong


  • Description

Description

  • Place of Origin: Shenzhen, China
  • #戶外防水LED Wall
  • Brand Name: OEM
  • Model Number: 10mx6m
  • Module Specifications
    1 Pixel Pitch 6mm
    2 Pixel Configuration SMD3in1
    3 Module Resolution 64×64 pixels
    4 Module Pixles 4096 pixels
    5 Module Size 192x192mm
    Specifications
    1 Screen Brightness ≥1000cd/m2
    2 Driving Method 1/32 scan
    3 Mini Viewing Distance 3m
    4 Max. Power Consumption 600W/m2
    5 Average Power Consumption 250W/m2
    6 Gray Level 14bits input, 4096 levels(212)
    7 Display Color 16M
    8 Frame Frequency ≥60Hz
    9 Refresh Frequency ≥1920Hz
    10 Uninterrupted Working Hours ≥72 hours
    11 Screen Life-span ≥100,000 hours
    12 MTBF ≥5,000 hours
    13 Discrete Blind Spot Rate <1/10000
    14 Continuous Blind Spot Rate None
    15 Blind Spot Rate <1/10000
    16 Screen Plainness <±1mm
    17 Power Supply Mode AC220±10%  50Hz/AC110±10%  60Hz
    18 Environment Temperature & Humidity Temperature:-20 Celsius~+60 Celsius Humidity:10%~90% RH
    19 Control Mode Synchronous display with control PC by DVI
    20 Control System DVI video card + full color control card + fiber system( optional)
    21 Display Content Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
    22 Interface Standard Ethernet
    23 Transmission Distance Multi mode fiber <500m, single mode fiber <30km,internet cable <100m
Note: The above prices are just for your reference, as you know the led display screen

is designated products, different size and functions, prices are different, so before

you pay for the order, better talk with our sales and get the exactly quote,

will change the prices for you according to the final quotation.
