- Place of Origin: Shenzhen, China

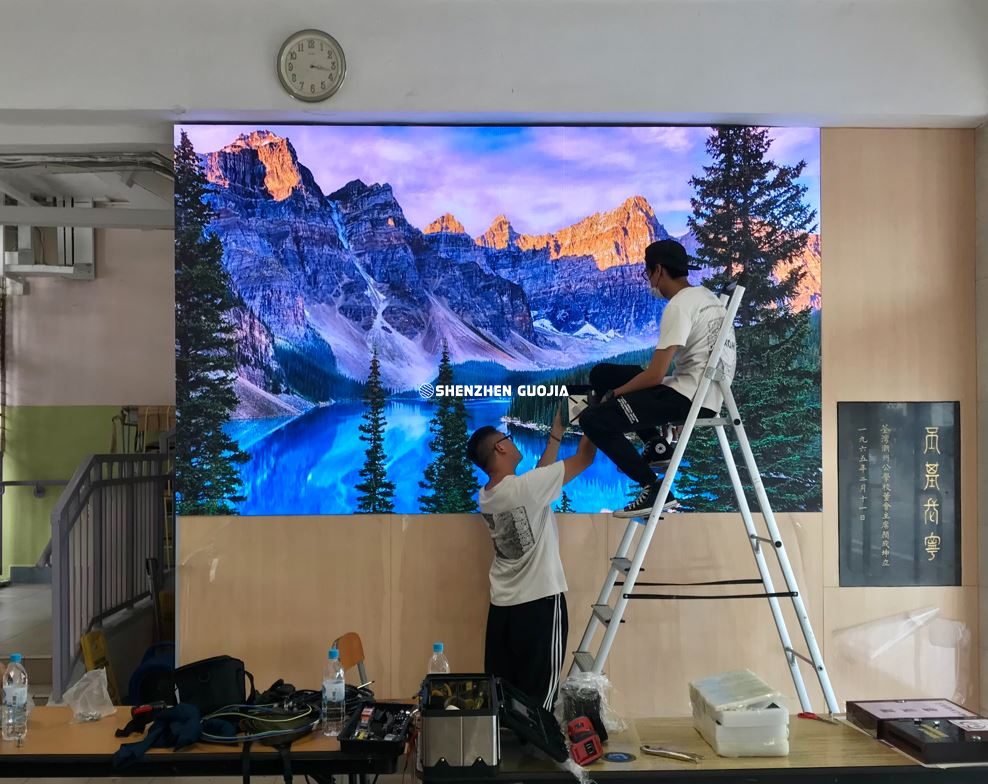

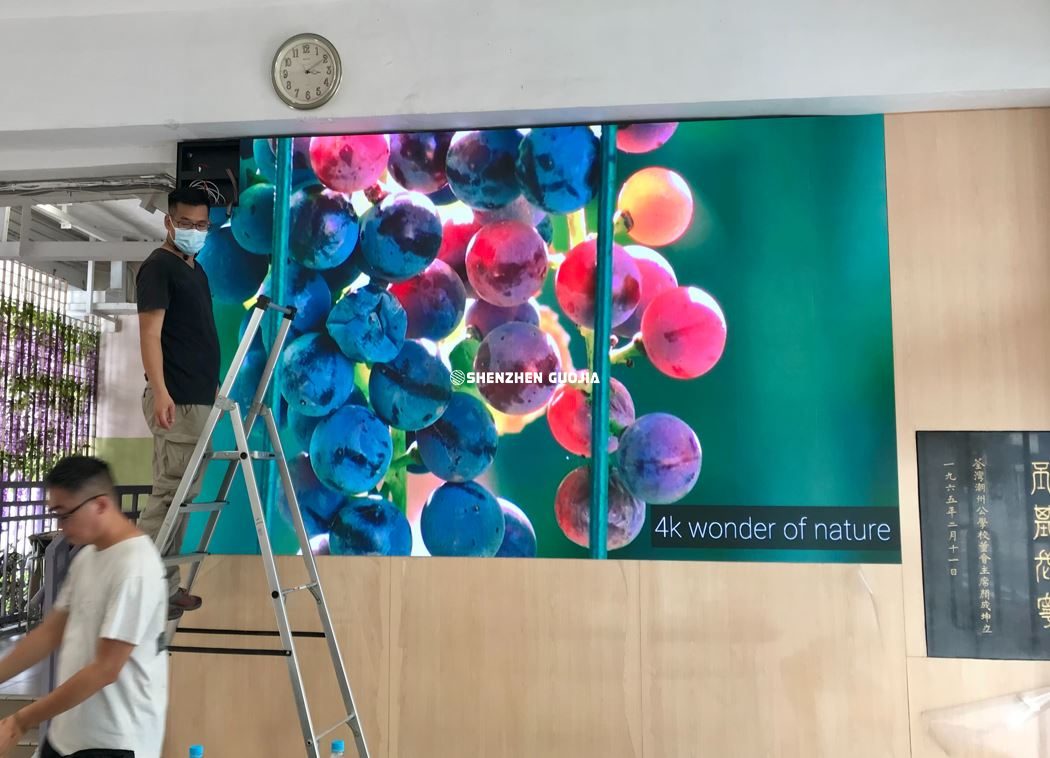

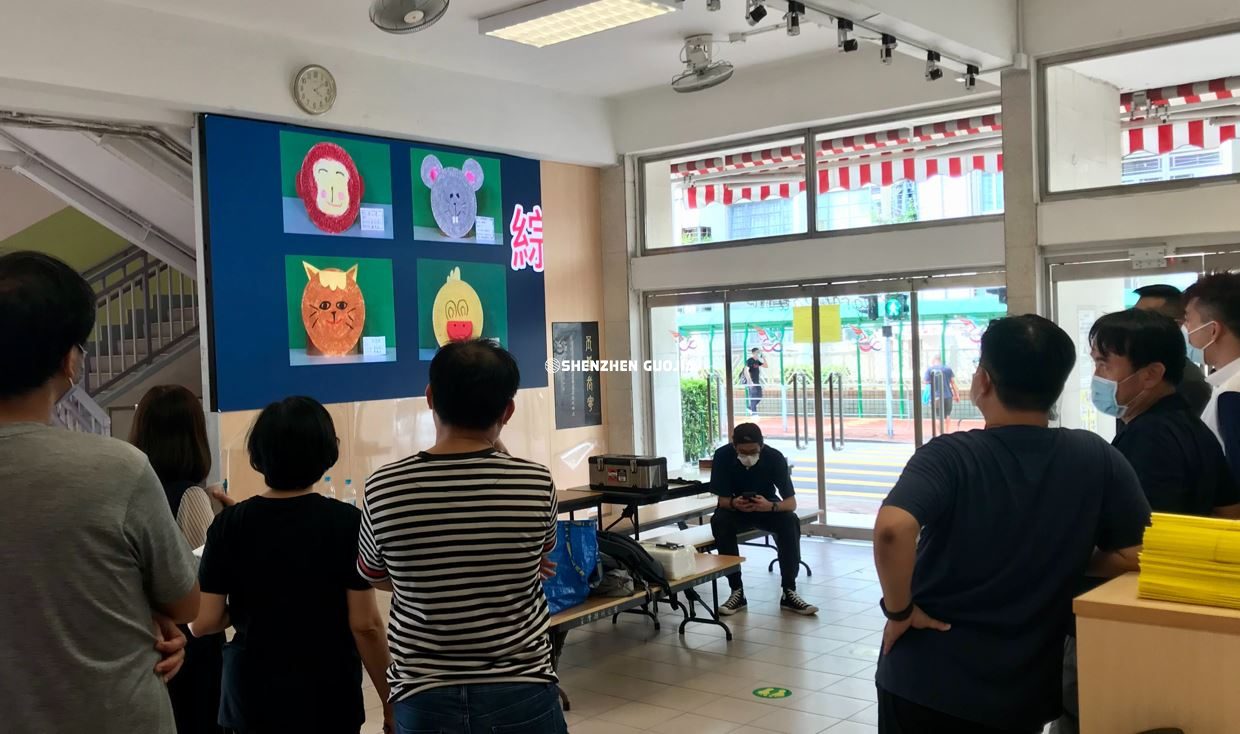

- Location Installed: 學校LED Wall Indoor P2.5mm for Tsuen Wan Chiu Chow Public School 學校LED屏幕
- Brand Name: OEM
- Model Number: p2.5mm
Resolution64(H)× 64 (V)Pitch2.5mmDensity160000 pixels/ ㎡LED ArrangementSMD 2121Driver ModeDynamic 1/32 Duty constant currentSize160mm× 160 mmMaskPure Black mask-high contrast screen
3.Electricity ParameterOptical RatingsBrightness≥1000cd/ ㎡View Angle140 degree ( horizontal) 140 degree (vertical)View Distance2.5 m-25mGray Scale8bits input, correction with 16bitsDisplay Color16.7MBrightness Adjustment100 levelsPower SupplyOperation PowerAC100-240V 50-60HZ Switch-ableMaximum Power Consumption850 W/m2Average Power Consumption48 0 W/m2Control SystemCorrection Scale Level16bitsFrame Update Frequency60HzScreen Refresh Frequency1200HzGamma Correction-5.0—5.0Support InputComposite Video, S-Video, DVI, HDMI., SDI, HD_SDIControl DistanceEthernet cable 100m, optical fiber 5kmSupport VGA Mode800×600, 1024×768, 1280×1024, 1600×1200Color Temperature5000-9300 adjustableBrightness Correctiondot by dot, module by module, cabinet by cabinetReliabilityOperating Temp.-20-60 Celsius degreeOperating Humidity10-95% RHOperating Life100,000 hoursMTBF5000 hoursContinuous Working Time≥48 hoursProtection LevelIP54Out of Control Pixel Rate0.01%
|Packaging Details:||plywood wooden case/flight case|
|Delivery Detail:||10-15days after deposit|
Can be show as 1 screen, also can be show 5 different
You’d better buy all modules at a time for one led screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can’t work together with your previous or later modules.
If you have some other special requirements, please contact our online sales.
Note: The above prices are just for your reference, as you know the led display screen
is designated products, different size and functions, prices are different, so before
you pay for the order, better talk with our sales and get the exactly quote,
will change the prices for you according to the final quotation.
