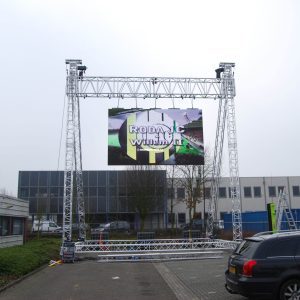

P20mm Rental for Holland Roda Football club

0 out of 5

Read more

P3.91mm Outdoor 戶外防水LED wall

0 out of 5

LED Module Size: 250mmx250mmx17.5mm ,LED Module With 1.6cm PCB and No LED Mask.
LED Module Brightness: 5500-5800 CD/m2(Nits)
LED Module Power Consumption: 35W/PC
Nationstar LED with ICN2038S/MBI5124 Driving IC.

Remark:

1. SMD Outdoor LED Module Including the Data & Power Cables, Waterproof Rubber Ring.

2. Epistar LEDs, 2 Years Warranty, Ship in 24 hours,Free Online Support.

3. LED Module Can Work With Linsn,Novastar,Colorlight,Xixun LED Conrol Card Etc.

P3.91mm Outdoor LED Display Panel Parameters:

Model		LINSN-P3.91-Outdoor-64X64
Resolution		64(H)×64(V)
Pitch		3.91mm
LED Arrangement		SMD1921
Driver Mode		Dynamic 1/16 Duty constant current
Size		250mm×250mm
Electricity Parameter
Optical Ratings
Brightness		5500-6000cd/M2
View Angle		140 degree ( horizontal) 140degree(vertical)
View Distance		4m-40m
Gray Scale		8bits input, correction with 16bits
Display Color		16.7M
Brightness Adjustment		100 levels
Power Supply
Operation Power		AC100-240V 50-60HZ Switch-able
Maxim Power Consumption		950 W/m2
Average Power Consumption		320 W/m2
Control System
Correction Scale Level		16bits
Frame Update Frequency		60Hz
Screen Refresh Frequency		960-1920HZ/S
Gamma Correction		-5.0—5.0
Support Input		Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance		Ethernet cable 100m, optical fiber 5km
Support VGA Mode		800×600,1024×768,1280×1024,1600×1200
Color Temperature		5000-9300 adjustable
Brightness Correction		dot by dot, module by module, cabinet by cabinet
Reliability
Operating Temp.		-20-60 Celsius degree
Operating Humidity		10-95% RH
Operating Life		100,000 hours
MTBF		5000 hours
Continuous Working Time		≥48 hours
Protection Level		IP65
Out of Control Pixel Rate		0.01%
