P3.91mm Outdoor 戶外防水LED wall
LED Module Size: 250mmx250mmx17.5mm ,LED Module With 1.6cm PCB and No LED Mask.
LED Module Brightness: 5500-5800 CD/m2(Nits)
LED Module Power Consumption: 35W/PC
Nationstar LED with ICN2038S/MBI5124 Driving IC.
Remark:
1. SMD Outdoor LED Module Including the Data & Power Cables, Waterproof Rubber Ring.
2. Epistar LEDs, 2 Years Warranty, Ship in 24 hours,Free Online Support.
3. LED Module Can Work With Linsn,Novastar,Colorlight,Xixun LED Conrol Card Etc.
P3.91mm Outdoor LED Display Panel Parameters:
Model | LINSN-P3.91-Outdoor-64X64 | ||||||
Resolution | 64(H)×64(V) | ||||||
Pitch | 3.91mm | ||||||
LED Arrangement | SMD1921 | ||||||
Driver Mode | Dynamic 1/16 Duty constant current | ||||||
Size | 250mm×250mm | ||||||
Electricity Parameter | |||||||
Optical Ratings | |||||||
Brightness | 5500-6000cd/M2 | ||||||
View Angle | 140 degree ( horizontal) 140degree(vertical) | ||||||
View Distance | 4m-40m | ||||||
Gray Scale | 8bits input, correction with 16bits | ||||||
Display Color | 16.7M | ||||||
Brightness Adjustment | 100 levels | ||||||
Power Supply | |||||||
Operation Power | AC100-240V 50-60HZ Switch-able | ||||||
Maxim Power Consumption | 950 W/m2 | ||||||
Average Power Consumption | 320 W/m2 | ||||||
Control System | |||||||
Correction Scale Level | 16bits | ||||||
Frame Update Frequency | 60Hz | ||||||
Screen Refresh Frequency | 960-1920HZ/S | ||||||
Gamma Correction | -5.0—5.0 | ||||||
Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI | ||||||
Control Distance | Ethernet cable 100m, optical fiber 5km | ||||||
Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200 | ||||||
Color Temperature | 5000-9300 adjustable | ||||||
Brightness Correction | dot by dot, module by module, cabinet by cabinet | ||||||
Reliability | |||||||
Operating Temp. | -20-60 Celsius degree | ||||||
Operating Humidity | 10-95% RH | ||||||
Operating Life | 100,000 hours | ||||||
MTBF | 5000 hours | ||||||
Continuous Working Time | ≥48 hours | ||||||
Protection Level | IP65 | ||||||
Out of Control Pixel Rate | 0.01% |
- Description
Description
#

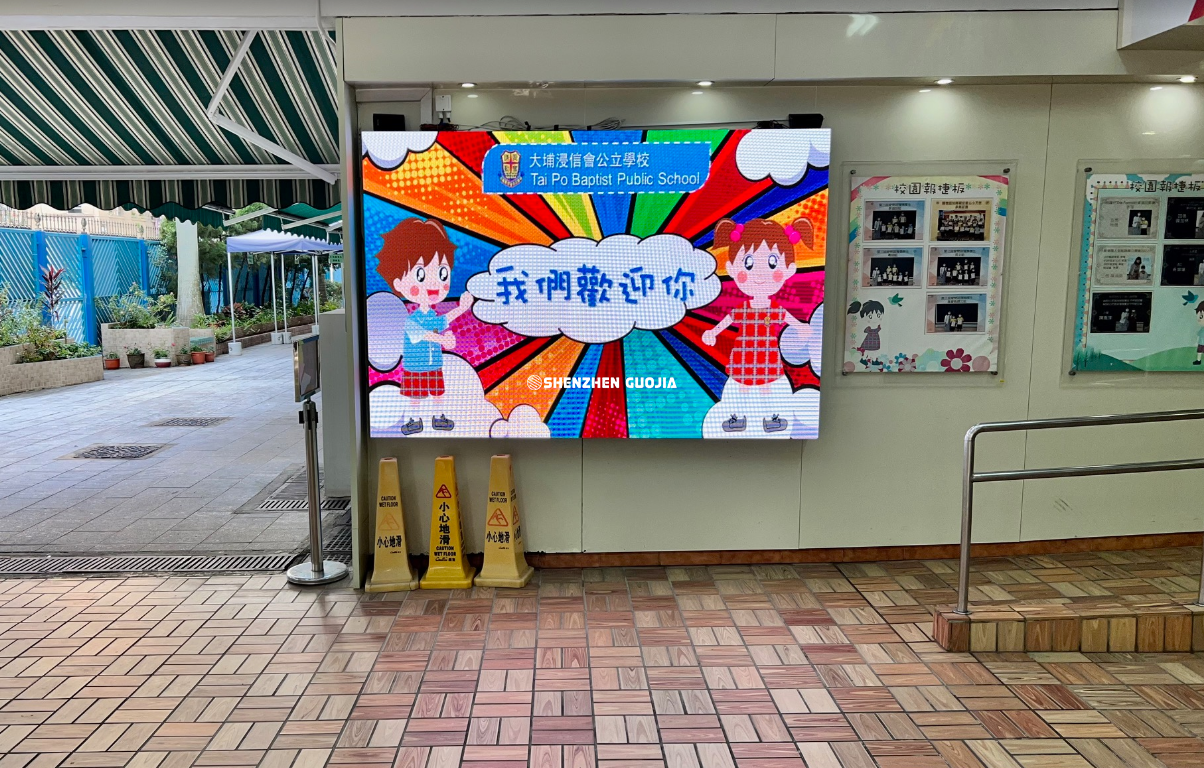

#官立小學LED Wall
