學校LED Wall P2.5mm Tin Shui Wai Primary School

學校LED Wall P2.5mm Tin Shui Wai Primary School


  • Description

Description

  • Place of Origin: Shenzhen, China

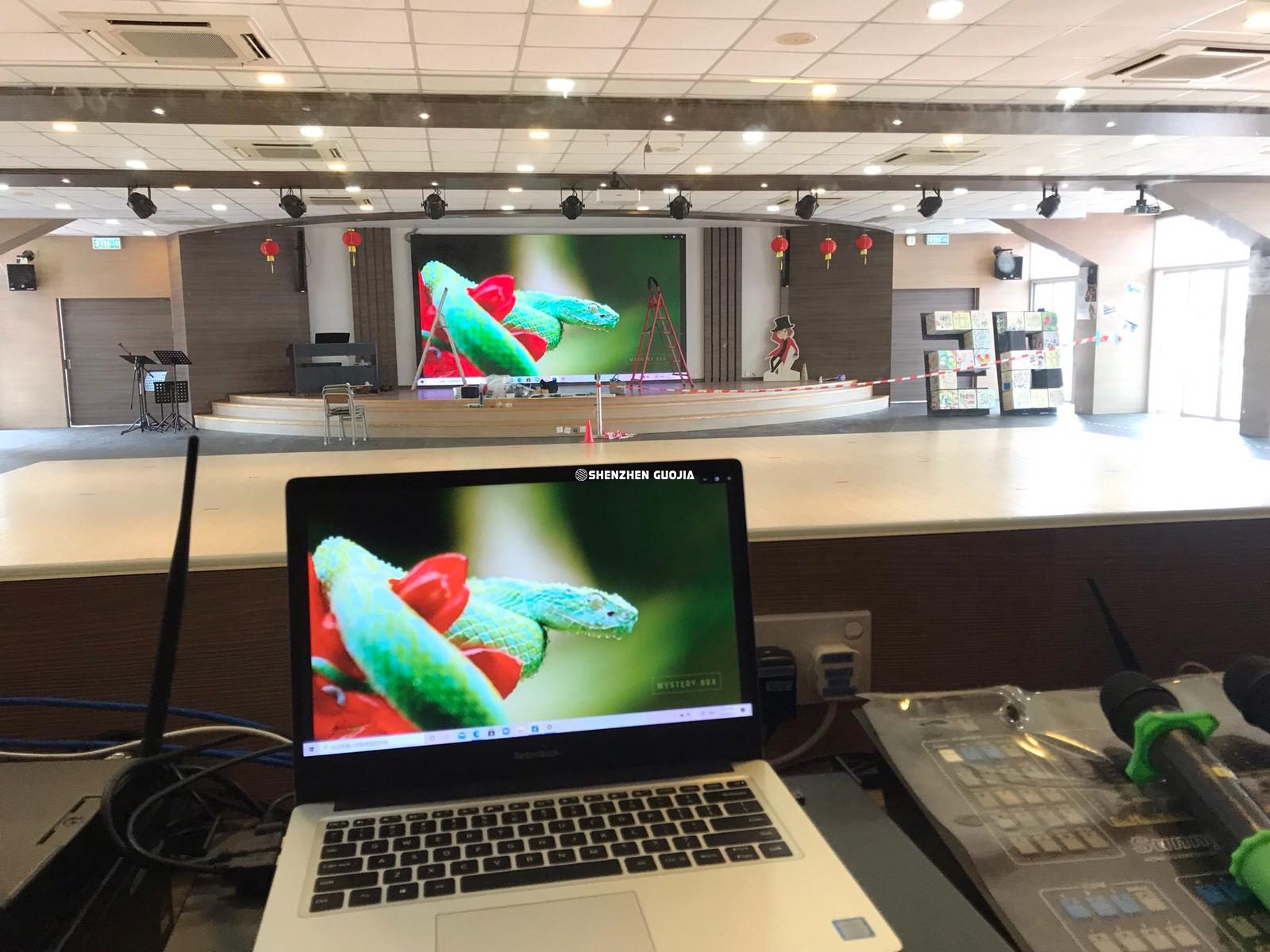

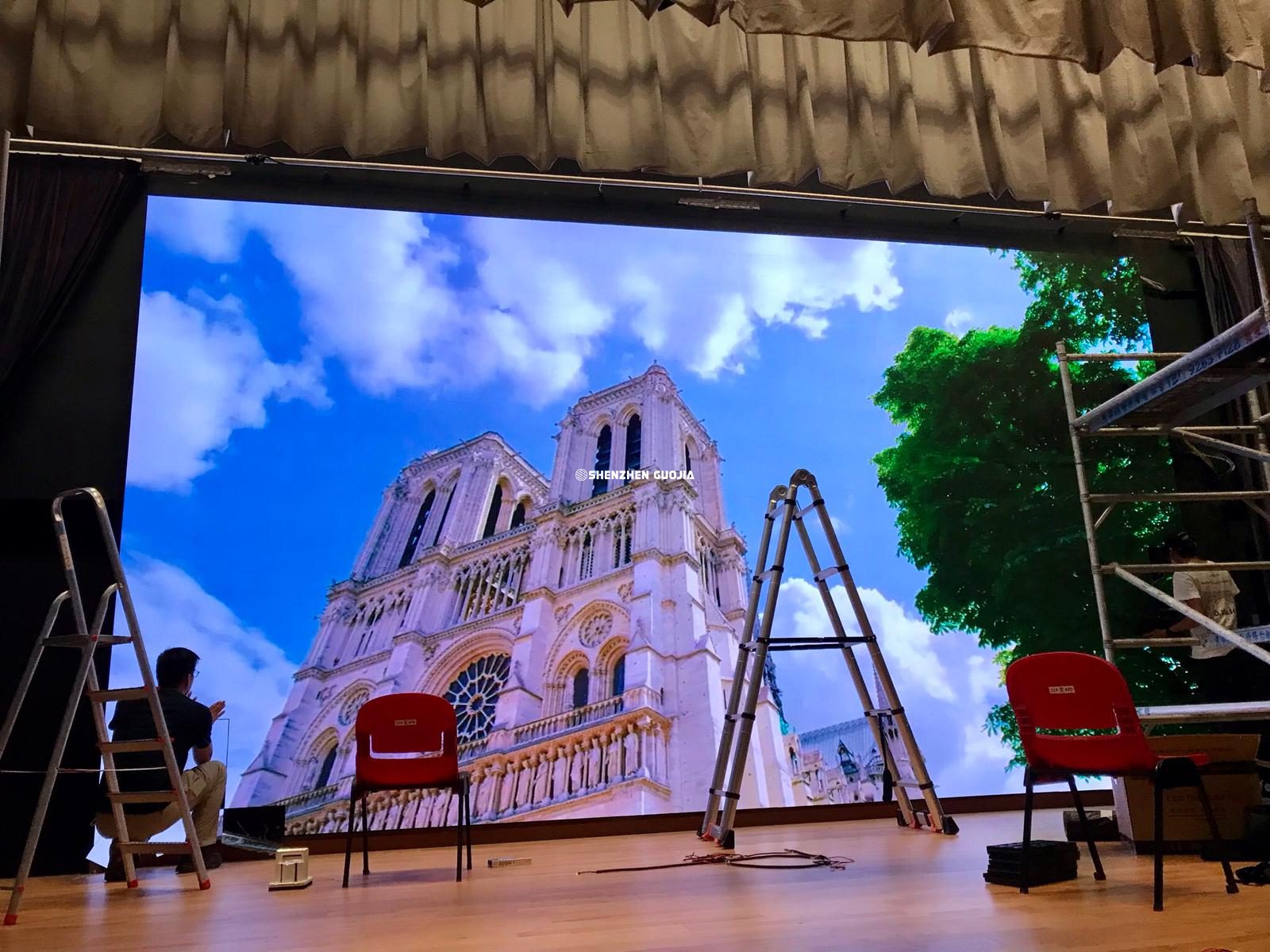

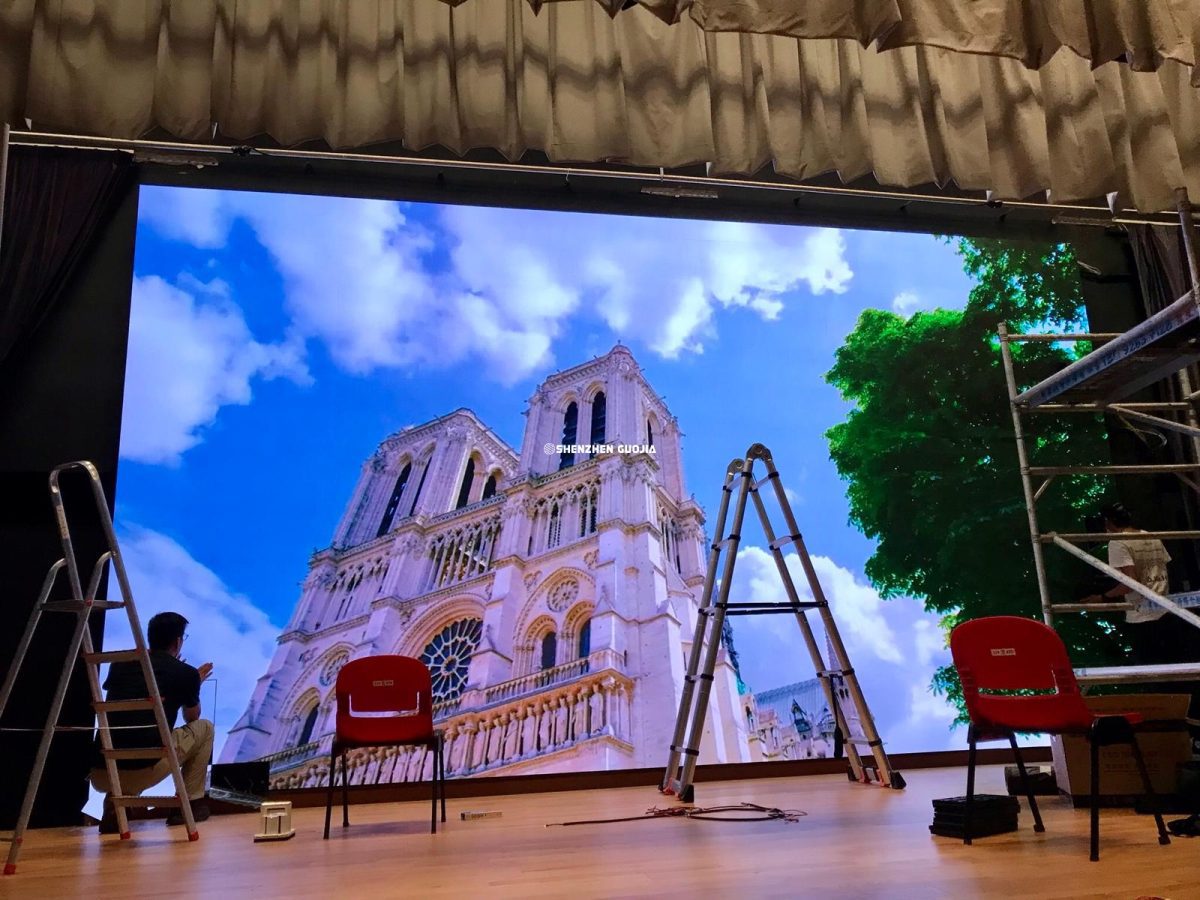

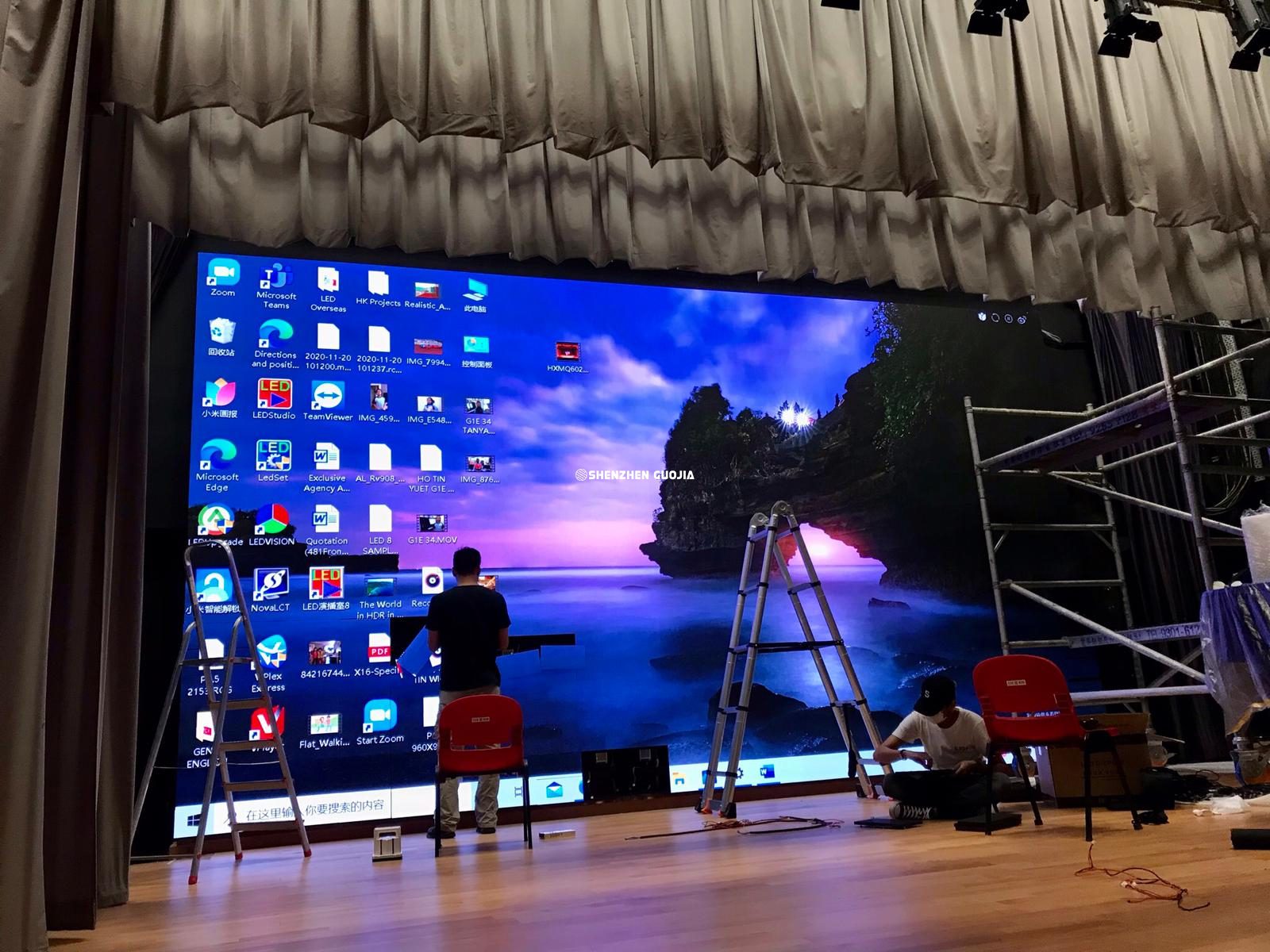

  • Location Installed: 天水圍循道衛理小學 LED Wall Indoor P2.5mm for Tin Shui Wai Methodist Primary School Hong Kong
  • Brand Name: OEM
  • Model Number: p2.5mm
  • Resolution
    64(H)× 64 (V)
    Pitch
    2.5mm
    Density
    160000 pixels/ ㎡
    LED Arrangement
    SMD 2121
    Driver Mode
    Dynamic 1/32 Duty constant current
    Size
    160mm× 160 mm
    Mask
    Pure Black mask-high contrast screen

    3.Electricity Parameter
    Optical Ratings
    Brightness
    ≥1000cd/ ㎡
    View Angle
    140 degree ( horizontal)  140 degree (vertical)
    View Distance
    2.5 m-25m
    Gray Scale
    8bits input, correction with 16bits
    Display Color
    16.7M
    Brightness Adjustment
    100 levels
    Power Supply
    Operation Power
    AC100-240V 50-60HZ  Switch-able
    Maximum Power Consumption
    850 W/m2
    Average Power Consumption
    48 0 W/m2
    Control System
    Correction Scale Level
    16bits
    Frame Update Frequency
    60Hz
    Screen Refresh Frequency
    1200Hz
    Gamma Correction
    -5.0—5.0
    Support Input
    Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
    Control Distance
    Ethernet cable 100m, optical fiber 5km
    Support VGA Mode
    800×600, 1024×768, 1280×1024, 1600×1200
    Color Temperature
    5000-9300 adjustable
    Brightness Correction
    dot by dot, module by module, cabinet by cabinet
    Reliability
    Operating Temp.
    -20-60 Celsius degree
    Operating Humidity
    10-95% RH
    Operating Life
    100,000 hours
    MTBF
    5000 hours
    Continuous Working Time
    ≥48 hours
    Protection Level
    IP54
    Out of Control Pixel Rate
    0.01%

Packaging Details: plywood wooden case/flight case
Delivery Detail: 10-15days after deposit

Important Tips:



Can be show as 1 screen, also can be show 5 different

You’d better buy all modules at a time for one led screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can’t work together with your previous or later modules.
If you have some other special requirements, please contact our online sales.



Note: The above prices are just for your reference, as you know the led display screen

is designated products, different size and functions, prices are different, so before

you pay for the order, better talk with our sales and get the exactly quote,

will change the prices for you according to the final quotation.
